Lithium Rechargeable Battery

Lithium Ferro Phosphate

Lithium-Ferro Phosphate Cylindrical Battery Specification

Cell Size Nominal Volt Nominal Capacity Max Dimensions (mm) Weight
V mAh Dia H g
IFR18500 3.2 1000 18 49 32
IFR18650 3.2 1500 18 65 40

IFR26650 3.2 3300 26 65 85
3.2 3800 26 65 88

IFR32700 3.2 6000 32 70 140

IFR40135 3.2 20000 40 135 366


Notes:

  1. Above list items for reference only, subject to further discussion. More battery items are available upon request on custom basis.

Lithium Ferro Phosphate Battery Soft Pack Specification

Type/Size Model No. Nominal Volt Nominal Capacity Max Dimensions (mm) Weight
V Ah Thickness Width Length kg
Li-FePO4 Soft Pack Battery
**6570 IFP2206570 3.2 7 22 65 70 0.2
**6596 IFP1806596 3.2 8 18 65 96 0.22
**100150 IFP100100150 3.2 10 10.0 101 151 0.29
IFP120100150 3.2 15 12.0 101 151 0.43
**160210 IFP60160210 3.2 10 6.0 161 211 0.29
IFP100160210 3.2 20 10.0 161 211 0.57
IFP200160210 3.2 40 21 161 211 1.15
**400400 IFP80400400 3.2 90 8.0 400 400 2.6
**770430 IFP98768430 3.2 200 10.0 775 435 5.7
IFP110768430 3.2 250 11.0 775 435 7.1
IFP220770430 3.2 500 22.5 775 435 14.2

Notes:

  1. LiFePO4 batteries may be manufactured either in standard liquid injection or gel technology, to be specified in quoted specs.
  2. Above battery sizes and dimensions are typical listing. More custom sizes are to be available upon requirement.

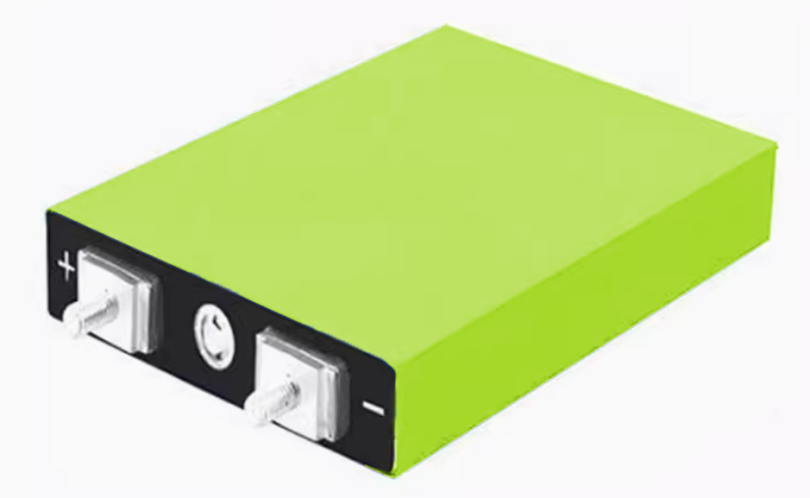

Li-FePO4 Battery in Hard Plastic Casing Specification

Type/Size Model No. Nominal Volt Nominal Capacity Max Dimensions (mm) Weight
V Ah Thickness Width Length kg
65126180 LF60AH 3.2 60 65 126 180 2.0
65126234 LF100AH 3.2 100 65 126 234 2.8
57142500 LF200AH 3.2 200 57 142 500 5.6

Notes:

  1. Above list items for reference only, subject to further discussion. More battery items are available upon request on custom basis.
